Using Translucent Building Elements

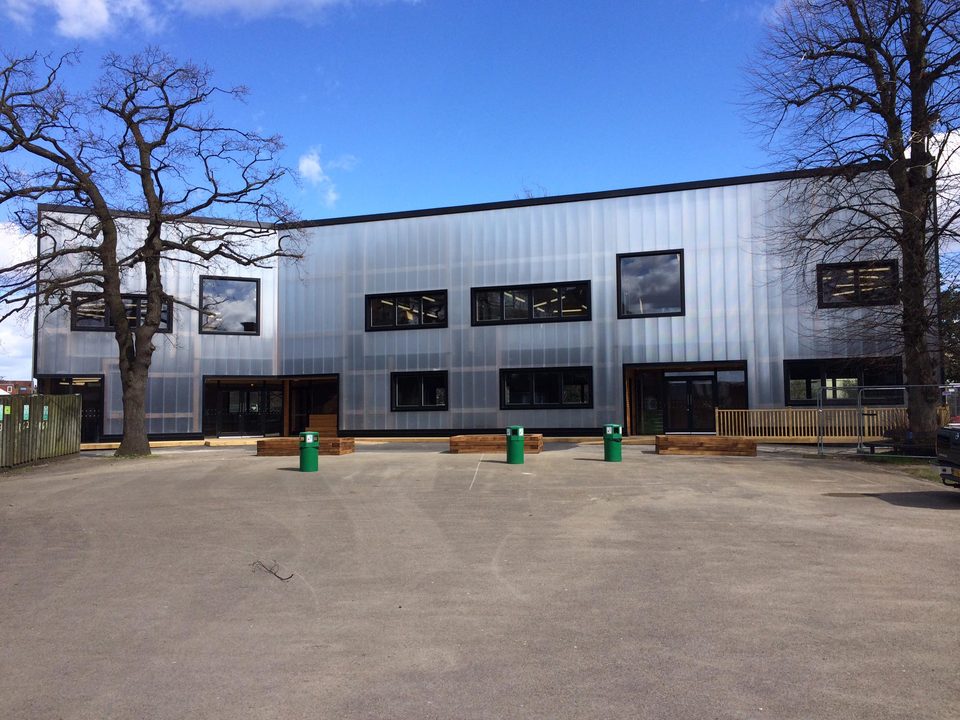

 Translucent building elements for use in facades pitched roofs and roof lights with 40mm thick panels and proven groove and tongue connection are 500mm wide.

Boraq Hamim art news site: 40mm thick panels with proven groove and tongue connection are 500mm wide. They differ from number of layers which has a significant influence on the U-value of the panel. The perimeter frame profiles are available thermally broken and non-thermally broken. The panels can be easily connected and are ideal for facade constructions as well as an optimal and long-lasting solution for roof glazing.

one of the company make these products is Rodeca Founded in 1971 a company with very soon 50 years’ experience in the production, development and sales of translucent products for facades and roofs.

50mm thick panel with a building width of 495mm has 10 layers and achieves a Ucw-value of approx (depending on the installation situation). 1.0W/m²K (according to DIN EN ISO 10077-2). Worldwide, the system is the first with a German general technical approval including thermally broken perimeter frame profiles. The panel is manufacturable in fully colored or in the two colored version “duocolor”.

60mm thick panel with a building width of 500mm has 12 layers and achieves a Ucw-value approx (depending on the installation situation). 0.87W/m²K (according to DIN EN ISO 10077-2). The German general technical approval is available. This panel system is ideal for premium industrial glazings and for roof glazing with appropriate minimum pitch as well as for every application with high demands on heat insulation.

Colour Range

• Clear with structure for panels for higher light transmission & light refraction.

• opal for optimized diffused light.

• Color Series – transparent or semitransparent colors, similar to RAL from approx. 300 m2 on request.

• BiColor Series – two-colored finish, inner wall colored, similar to RAL from approx. 150 m2 on request.

• DuoColor – two-colored finish of translucent building elements custom made in transparent or semitransparent colors similar to RAL from approx. 300 m2 on request.

• DecoColor – two-colored finish, outer wall colored, similar to RAL from approx. 150 m2 on request.
